So all three main sections of Good Carb are washed and drying on the bench. I dunked them each in Simple Green for a couple of days and then scrubbed them with a toothbrush, and 99% of the crud came right off. After a rinse with warm water, they look close to brand new. I’m going to let them dry completely and then start tearing down and replacing parts next week.
I reassembled the stunt carburetor I’ve had sitting on the bench since the end of January and put it aside so that I could tear down the good one. Actually, Jen needed the box that the rebuild kit came in for something, so I figured I’d straighten up the bench while I was moving the parts around. Once I’d gotten that put back together, I looked over the good one and started pulling it apart. I was pleased to find it’s in really clean condition, with a little dust in the phenolic bowl, a tiny bit of corrosion around the air horns, and a lot of clean metal everywhere else. The floats are almost brand new (but will be replaced with brass) and the internals are all clean as a whistle. There was a little leftover gas trapped in the horn that made the basement smell, so I moved it out to the garage this morning, where it’ll get a good dunking in carb cleaner.
When I was a kid, I spent countless hours of my life building with LEGOs on the floor of the family room. I’d build something, take it halfway apart, put it back together again, and then repeat that cycle until I got it just the way I wanted it. All of this was unwitting practice for my adult life, where I’ve disassembled computers, electronics, power tools, engine parts, and other assorted machines without fear of being unable to re-assemble them.

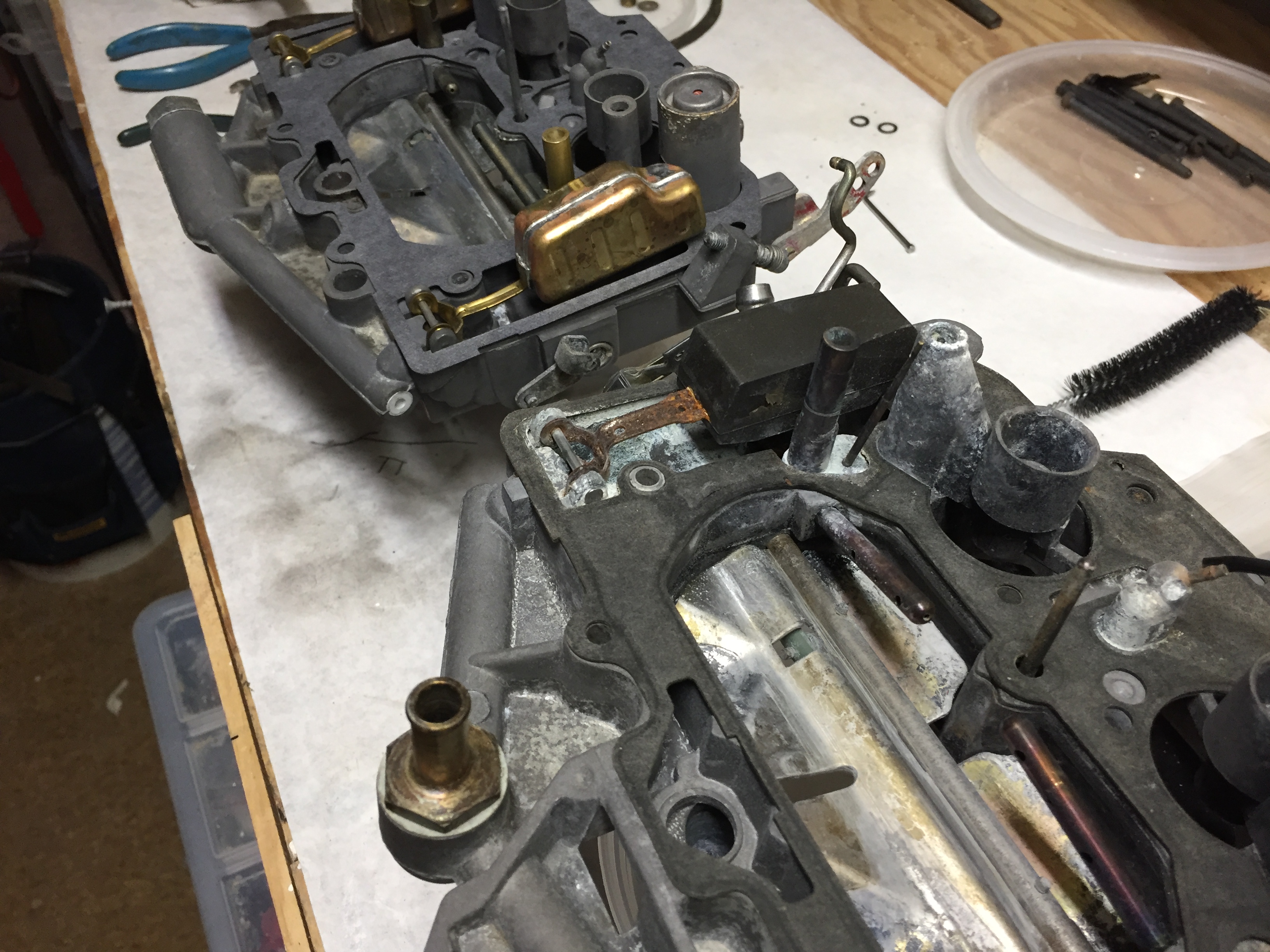

So, working my way through the videos I’ve downloaded, I decided I’d start disassembling the dirty unit first to get my practice in.
Most of the linkage came off relatively easily, and when I understood the secret Thermoquad disassembly trick (two hidden screws under the primary butterfly) the whole thing came apart pretty easily. It was then when I understood why it was so filthy. At some point it had gotten a lungful of water or mud, because both chambers were full of brown crud. The underside of the resin bowl was filled with corrosion and blackened carbon. I began to get nervous, thinking I’d never get it cleaned up.
Into a bucket of concentrated Simple Green it went, and after about an hour’s soak the resin bowl came out looking brand new. I scrubbed it with a toothbrush and bottle cleaner to get the residue out, and let it dry on the bench.
Then I threw the top air horn in to let that soak. Corrosion had crusted over everything made of ferrous metal; the float arms were rusted solid. The whole thing looked charred and sooty. I figured I’d try the detergent to see how clean it would get first.
After about two hours I was shocked to find it had turned Simple Green to Simple Brown, and most of the soot had disappeared. The aluminum appeared much cleaner, and the metal parts were more visible.
It’s still pretty fucked up, though; Simple Brown can’t dissolve whatever that white crusty stuff is in the upper left, and the well under the float (that black square thing on the left) is filled with it. It’s going to soak overnight, and then if I can’t get the parts free I’ll put on some gloves, take it outside, and hit it with the carb cleaner.
Santa (technically, my sister’s boyfriend) brought me a lovely gift this Christmas: a carb rebuild kit for my spare Thermoquad including all of the gasketry, springs, and other small parts needed to overhaul the mechanical bits. Introduced by Chrysler in 1969, the Thermoquad is a four-barrel carburetor designed with two small primary and two large secondary bores. At idle or cruise, the primary bores supply fuel to the engine in small amounts for efficiency, and under load or acceleration the secondary bores open up to dump fuel into the engine, adding power. It’s built around a phenolic resin chamber sandwiched with two aluminum plates, which was supposed to keep the temperature of the upper bowl 20Ëš lower than standard metal carburetors of its day–because vapor lock was standard equipment on a 440 big block. So I’m going to have to study up on this Malaise-era marvel of engineering.
My engine, near as I can figure, is a 1979. As the 70’s wore on and emissions standards got stricter, engine displacement decreased and smog equipment strangled engines. IH trucks weren’t as strictly governed as passenger vehicles of the era (trucks over a certain weight and load limit were exempt from CAFE regulations, hence IHC advertising the Scout as the XLC in 1975 onwards) but smog equipment was still added to pass emissions tests, and the carbs got more complicated as the decade drew to a close. The Thermoquad sprouted all sorts of ports and valves and complicated linkages to govern choke, temperature, airflow and throttle, and the result is a lump of metal that looks like C-3PO screwed a pinball machine.
I’ve got three Thermoquads in my collection. The first is the one that came on Peer Pressure, which I had overhauled by my friend Rodney a few months after I got the truck. Tracing the serial number (9128S), it was originally made for a ’79 IHC 345ci engine with an automatic transmission. Rodney is a gearhead of the first order (he has a slingshot dragster parked in his driveway) and no stranger to carburetors. He made it sing, but that was eight years ago.
The second is a spare I picked up from a fellow north of Baltimore. This too is a 9128S. It’s the spitting image of the one on Peer Pressure, minus the funky extra linkage on the throttle arm to the left. It’s also the rebuild candidate and the one I’ll be working with here.
The third is a spare I picked up from my friend Jason, who converted his Traveler over to fuel injection two years ago. Tracing the serial number (9203S), it was originally made for a ’79-80 IHC 345ci California smogged engine with an automatic transmission. The top of the air horn at the fuel inlet is different, and there is one vent tube where my other carbs have two. It’s also super crispy and in need of a major wash. It will be my bench reference and possibly a source of spare parts.

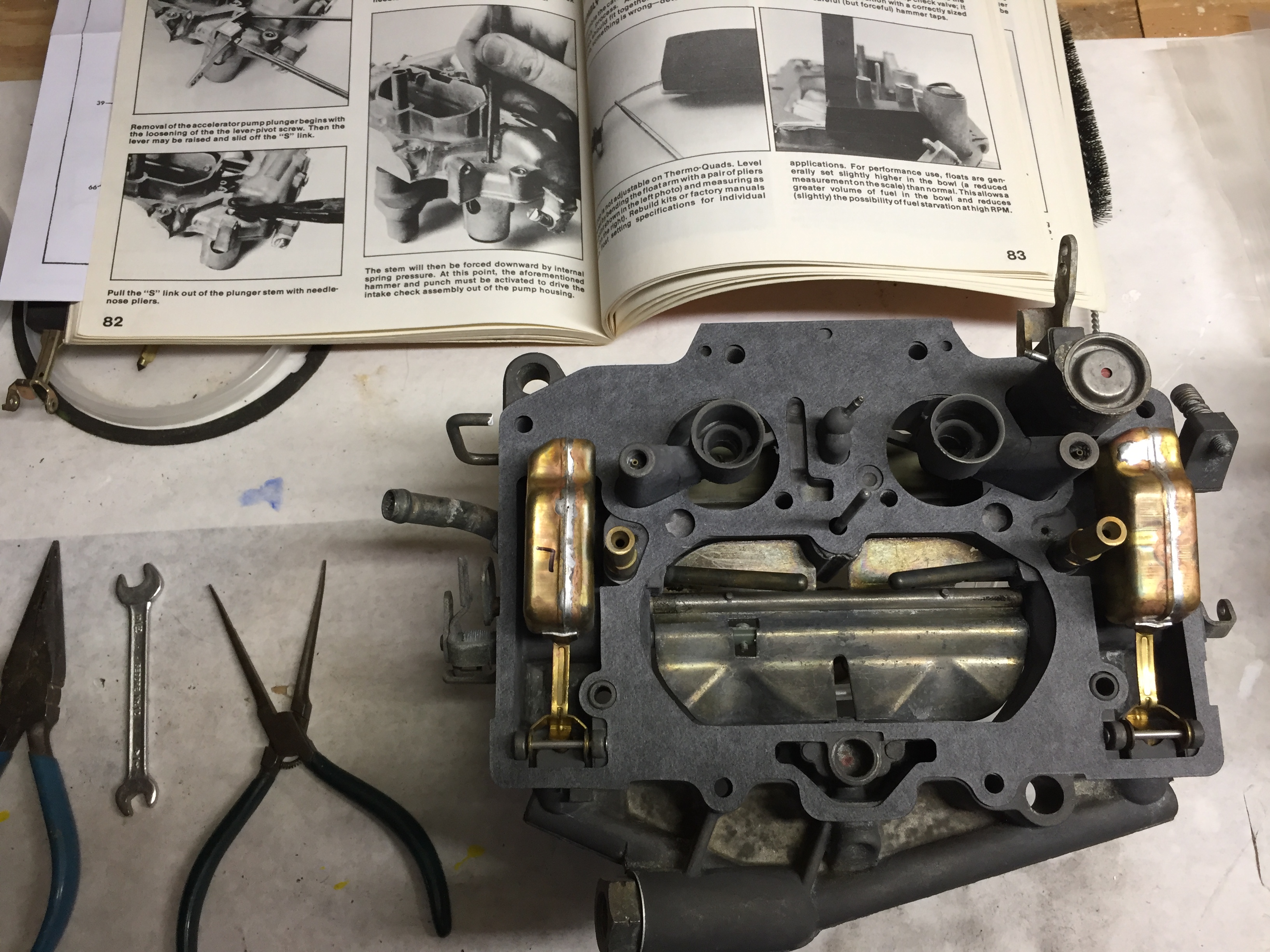

The first order of business is to arm myself with knowledge. I downloaded a series of getting-to-know-you videos from YouTube where a gentleman steps through the features of the TQ, and another where he goes through the steps of rebuilding one. I’ve got the original ’72 Chrysler TQ service manual, an updated ’82 Federal Mogul manual, and the Dave Emanuel bible.
The first order of business is to clean them both, which will require a bucket of Simple Green and a couple cans of carb cleaner, which I’ll pick up this weekend. Then it’s on to the teardown.
In the quest to get the Travelall running, I started amassing a pile of new parts based on my attempts with friends smarter and more experienced than me. When Erick stopped over he shook his head sadly at my old distributor, so I ordered a brand new HEI unit and then had to wait while it was on backorder. During that time, I spent a total of about $8 on the correct points unit and five minutes installing it, and suddenly I had spark at the wires. So I pulled the carburetor off and soaked it in some cleaner Friday night, then followed a set of instructions online to rebuild it.
It was exceptionally clean inside, but the gaskets had all fused to the metal so I had to spend a good bit of time scraping and sanding the paper off all the surfaces. The accelerator pump diaphragm had solidified, so that got replaced. Once I’d cleaned everything reassembly was straightforward—the Holley 2300 is a very simple carburetor to work on compared to my Thermoquads.
Sunday afternoon, after chasing a generator all over town, I re-installed the carburetor and filled it up with fuel for giggles. This time I followed some of the advice I’d seen online and filled the bowl with fuel before turning the key over. After a couple of tries and the addition of even more fuel, I was happily stunned when she caught and turned over for a few brief seconds:
Flush with success, I started modifying fuel lines to simplify the delivery system and plumbed the boat tank/fuel pump combo to charge the carb. There were no leaks (huzzah!) so I primed the carb and turned her over: after thinking about it for a minute, she fired right up and idled immediately. I topped off the coolant and let her run for a few minutes, noting that the idle was fast—that’ll get adjusted this week—and that there’s a little clatter here and there. The tailpipe sounded good and only a little soot came out, which is a good sign there are no critter nests in the muffler.
So I’ve got a fancy HEI distributor that’s going right back to California this week for a refund. While I was idling the truck I started really looking under the hood and finally clocked that the clutch is a hydraulic system paired with the brake cylinder, which explains why both pedals have no life in them. I’ve got to source a dual cylinder and a shit-ton of soft brake lines as well as a flaring tool and start replacing those in order to get any kind of gear-changing going. Which is good, as the next project on the list is rebuilding the rear drums.
The truck is currently up on two jackstands with the rear wheels off, waiting for two new tires to arrive at my local NTB from TireRack. I pulled the drums off and I’ll have those resurfaced when I have the tire mounted, and I can spend evenings this week rebuilding each rear drum. I’m only mounting one tire because the fourth rim is 15″ and won’t accept the tire, so I have to source a 16″ rim with a 3″ backspacing and 4.5″ bolt pattern from somewhere (ideally, I’d find two).
On Monday I went out to continue sanding and skimming areas of the truck to get them ready for paint. The passenger side tailcap is coming along well, but will need a lot of attention to be clean enough to go to paint—but I’m enjoying the sculptural aspect of working with filler to get things smooth.
Recapping the starting issue, we’ve replaced almost everything in the ignition system besides the core distributor, but the points I originally bought didn’t have an integrated condenser so we tried to hotwire it on the workday. Testing for spark, we never got anything at the plugs. I replaced the points in the original distributor with a new set with an integrated condenser, and found an early picture I’d taken of the unit as it came to know how to wire things back up (see that black wire in the lower center of the picture above?). After I wired the second new set of points in as per the original and tested my testing light on the Scout, I hooked it up to the Travelall and then I had spark! Unfortunately I couldn’t get her to light off. So I pulled the carburetor off to tear it down and clean it out; I figured the accelerator pump seals were dry and the float was probably stuck.
I also started tracing wires under the dash and pulled the radio plate off to expose everything underneath; while I was there I pulled the old head unit and two dry-rotted speakers they’d bolted under the dash out and threw them in the trash to make more room. The way this dash is designed it could be much simpler to pull wires (or maybe even replace the loom ) than it is in the Scout, but I’m still trying to make a plan for how I’m going to get this thing wired up correctly.
Wednesday evening I was out sanding the truck and a guy on a big Harley parked at the end of the driveway; he’s a fellow car guy and stopped by to check out the truck. This marks the fourth person who has stopped in since I parked the truck in the driveway; clearly people have noticed.
As of Thursday morning the carb was partially disassembled and sort of half-soaking in carb cleaner, but I couldn’t get the float bowl or metering block off the side of the horn. I found a wider container to put the assembly in so that the affected sections were submerged, and was finally able to get all the sections apart on Friday morning. The paper gaskets had glued themselves to the metal so I had to carefully scrape everything apart to get it cleaned up—but the inside of the carb was very clean.
And on Friday I got two boxes of goodies: the new distributor showed up as well as some fuel hose, hose clamps, and a proper oil filter. So if we can’t make the old distributor work, the new one should be ready to pop in (minus a set of male-to-female plug wires).
Farting around with an old Scout II hubcap Friday night, I put it on the odd 15″ rim, where it fit well. Suddenly, a light bulb went off in my head and I realized that a 16″ tire won’t fit on a 15″ rim (duh Bill) so I’d have to source a rim for the fourth tire I just bought. It so happens a guy near here is selling an entire front axle assembly with wheels included, so I messaged him to see if he’d be willing to sell me the wheels (providing they’re the correct size).
This picture showed up in a related search for weatherstripping parts; it’s exactly what I’d like to do with the Travelall. This is the same year, model, and paint scheme I have. Seeing this now, I like the look of red steelies with the 60’s style IH moon hubcaps (of which I now own 3). I’ll have to find two more in good shape, as one of mine has a huge dent in the center. I also want to find a set of Western mirrors like these instead of the triangle door mounts that I’ve got. I can’t tell exactly but it looks like this one has a set of hiback buckets in the front, which I may go with instead of a period-correct bench seat; that way I could install a Tuffy console in between for some extra security.
One step at a time…
In the meantime, here’s a list of stuff to be tackled on the Travelall, in rough order of importance:
Get a title
This starts with the Vermont Loophole and will provide plates and a registration, which I can then trade in at the Maryland DMV for a title. — Package mailed 2.25; Vermont plates in hand 3.13.
Gut the interior Done
I did this on 2.25.23, and all of the old carpeting, upholstery, and headliner is gone.
Buy a battery Done—3.4.23
I talked to a guy on Marketplace who has a pretty NOS battery box that I’ll be installing; my guess is that I’ll have to replace the ground and other wires as we dig in.
Get the engine running off the boat tank Done 4.24.23
If we can get it running, then we’ll know the transmission situation and I can move it around the driveway.
Buy a service manual Done
Binder Books has reprints available for about $125. This will help with key systems like the electrics.
Drain the engine oil and replace Done 4.29.23
I’m definitely going to put Rotella diesel oil in when it comes time; it has lots of nutrients and minerals for flat-tappet cams. I’m also going to send a sample away to Blackstone for a readout on the engine’s health (after we get it running).
Replace the windshield Done 9.23
This is pretty important, as there are several places where the rubber gasket is leaking, which is the cause of the front floorpans being so rusty. There are new windows available for C-series trucks, so I think this will be the next big purchase. I put the windshield in the Scout, but I don’t yet know how difficult it is to do for this truck.
Sort out the brake situation Pretty sure I’ve got this complete, as of 8.11.23.
I need to order a rebuild kit and new brake shoes based on what I’ve got, so the first order of business is to identify the brake system. The front drums are Raybestos 2316R’s, which is a common size; I was fearing these would be the dreaded Lockheed brakes, which are impossible to get parts for.
There are brake lines in the back but I don’t know if they make it all the way up front. I haven’t looked at the master cylinder yet either.
Drain the radiator and flush it
I have no idea if it holds water, but it’s not currently leaking in the driveway. God only knows how long it’s been sitting, so it will definitely need a long flush to get the crud out. Makes me wonder how crusty the water pump is, too…
Get new tires Done as of 6.23. I’m pretty sure I have a viable 4th 16″ rim with a tire mounted.
There are two new tires mounted to the front axle, but I still need two rear tires on the rear. I also need to source a 6-lug rim for the spare.
Rebuild the carburetor Done 4.24.23
It’s a Holley 2300 with a manual choke; I’ll stick with what’s running now, but this is a prime candidate for an aftermarket fuel injection update sometime in the future. I have a rebuild kit in hand.
Identify the engine The lineset ticket says it’s a 304.
It’s definitely an International V8. There is no stamp on the engine boss, which dates the block back to the ’60’s. The Lineset Ticket says it’s a 304, but I have to measure the distance between the heads to know for sure.
Rebuild the distributor Done 4.24.23
It’s a Delco cast iron unit. Parts are available but I need to figure out exactly what to call it so I can make sure I’m getting the right thing. I’ve got a new set of points, a capacitor, new plugs and wires in hand.
Pull all of the A/C stuff off the engine
We did this on 3.6.23. The compressor, canister, hoses, and radiator are gone.
Find a used fuse block, add it, and rewire the truck
Apparently someone cut the whole fuse panel out, so none of the electrical system works except for the starter. There are two ways to go here:
- Rewire the whole truck with a Painless or Kwikwire kit. I’d go with the 14-circuit kit and have some spare circuits for extra accessories.
- Buy a premade wiring harness and just plug it in. Provided I can find a new fuse block.
Remove all of the extra added wiring
There’s a trailer brake and aftermarket cruise control system to be removed, and a set of external lights that were hacked onto the rear of the roof. I’m sure there are other surprises under the dash. Wish me luck.
Get the rust and paint situation sorted out
Most immediately, I have to diagnose and abate the rust on the floorpans. I’ve got a jug of Eastwood Rust Converter for this very purpose; the idea is to stop it in its tracks and then hit it with Encapsulator until I can dig in to cutting it out and replacing everything. It’s wet because the seal around the windshield is leaking on that side; I can get new glass and rubber for it, so that will be first on the list. In the meantime I’ll plug the holes with caulk and call it good.
Next, order and install new weatherstripping for the inside and outside on the doors. This will also keep moisture out of the cabin.
Grind the rust out of the rain gutter
This is a big one, and will span the entire roof. It’s rusty all the way around the perimeter and up on the roof by 2-3″, so it’s going to be a 2-3 day weekend project. There are large blooms of rust on the roof in random places as well, so I’m going to block out two days to cover the whole thing, prep it for paint, and hopefully shoot it in IH red.
Convert and encapsulate the rust in the rear wheel well
I’ll probably grind it out with a wire wheel first and then treat the whole thing. The underside needs to have the undercoating scraped off and new undercoating applied.
Clean up the rest of the exterior paint
There are a lot of areas to be addressed before I can do a $300 Maaco job. It’s going to take all summer, I’d figure.
Model-specific parts to be found:
Source a new passenger rear window—this will be one of the hardest and most expensive things to find.Source a fuse block.Source a new front bench seat (if I want to go authentic).Source a rear bench—I have a line on one of these, but it’s at the other end of Massachussetts.- Find sun visors—I still need a passenger side visor.
Find a spare rim—it’s a wierd 16″ bolt pattern I haven’t dealt with before. Maybe someone at Nats will have one.
